How to install MY2N - D2?

Hey there! As a supplier of the MY2N - D2, I'm here to walk you through the process of installing this nifty little device. Whether you're a DIY enthusiast or a professional electrician, this guide should make the installation a breeze.

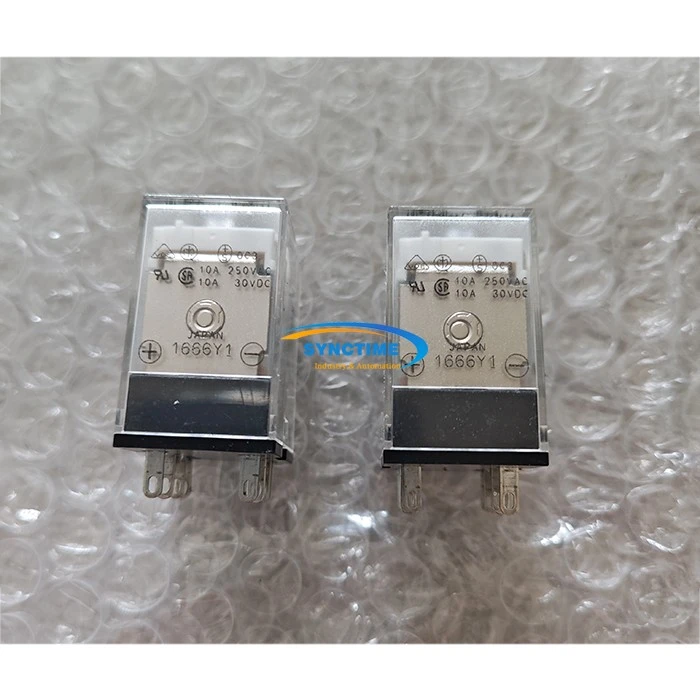

First off, let's talk a bit about the MY2N - D2. It's a high - performance power relay that's widely used in various industrial and electrical applications. If you want to know more about it, you can check out the MY2N-D2 Power Relay. This relay is known for its reliability and durability, making it a top choice for many projects.

Pre - installation Checks

Before you start the installation, there are a few things you need to do. First, make sure you have all the necessary tools. You'll typically need a screwdriver, wire strippers, and possibly a multimeter. A multimeter is handy for checking the voltage and continuity, which can help you avoid any electrical mishaps.

Inspect the MY2N - D2 for any visible damage. If you notice any cracks, bent pins, or other issues, don't use it. Contact us right away, and we'll get you a replacement.

Also, check the installation environment. The MY2N - D2 should be installed in a dry, cool place away from direct sunlight and excessive heat or moisture. Make sure there's enough space around the relay for proper ventilation.

Understanding the Pinout

The MY2N - D2 has a specific pinout that you need to understand before you start connecting the wires. The pinout diagram is usually included in the product manual. If you don't have the manual, you can ask us, and we'll send you a digital copy.

Basically, the pins are divided into two main groups: the coil pins and the contact pins. The coil pins are used to apply the control voltage to activate the relay. The contact pins are used to switch the load circuit.

Installing the MY2N - D2

1. Mounting the Relay:
   • First, decide where you want to mount the MY2N - D2. It can be mounted on a DIN rail or a flat surface. If you're using a DIN rail, simply snap the relay onto the rail. Make sure it's securely attached.
   • If you're mounting it on a flat surface, use the mounting holes on the relay. Insert the screws through the holes and tighten them gently. Don't overtighten, as this could damage the relay.
2. Connecting the Coil Wires:
   • Identify the coil pins on the relay. Usually, they are marked on the relay body. Use your wire strippers to strip about 1/4 inch of insulation from the ends of the control wires.
   • Connect one end of the control wire to one coil pin and the other end to the other coil pin. Make sure the connections are tight. You can use a small screwdriver to tighten the terminal screws.
   • Check the voltage rating of the coil. The MY2N - D2 is available in different coil voltage ratings, such as 5V, 12V, 24V, etc. Make sure the control voltage you're applying matches the coil voltage rating of the relay.
3. Connecting the Contact Wires:
   • Identify the contact pins. There are normally open (NO) and normally closed (NC) contacts. The NO contacts are open when the relay is not energized and close when the relay is energized. The NC contacts are the opposite.
   • Decide which contacts you need to use for your application. If you're using the NO contacts, connect the load wires to the appropriate NO pins. Again, strip the ends of the wires and connect them securely to the pins.
   • If you're working with high - current loads, make sure the wire gauge is appropriate. Using a wire that's too thin can cause overheating and other problems.

Testing the Installation

Once you've connected all the wires, it's time to test the installation. Before you apply power, double - check all the connections to make sure there are no loose wires or short circuits.

Use a multimeter to measure the resistance of the coil. It should be within the specified range in the product manual. If the resistance is too high or too low, there might be a problem with the relay.

Apply the control voltage to the coil pins. You should hear a clicking sound as the relay activates. Use the multimeter to check the continuity of the contacts. When the relay is energized, the NO contacts should show continuity, and the NC contacts should show an open circuit.

Troubleshooting

If the relay doesn't work, don't panic. Here are some common issues and solutions:

• No clicking sound: Check the control voltage. Make sure it's the correct voltage and that it's being applied to the coil pins. Also, check the coil resistance again. If the coil is burned out, you'll need a new relay.
• Contacts not switching: Check the load circuit. Make sure there are no open circuits or short circuits in the load. Also, check the contact pins for any loose connections.

Similar Products

If the MY2N - D2 doesn't quite fit your needs, we also offer other relays like the 34.81.7.024.9024 Relay and the 38.51.7.024.0050 Relay. These relays have different specifications and features, so you can choose the one that's best for your project.

Contact for Purchase

If you have any questions about the MY2N - D2 or any of our other products, or if you're interested in making a purchase, don't hesitate to reach out to us. We're here to help you with all your relay needs.
