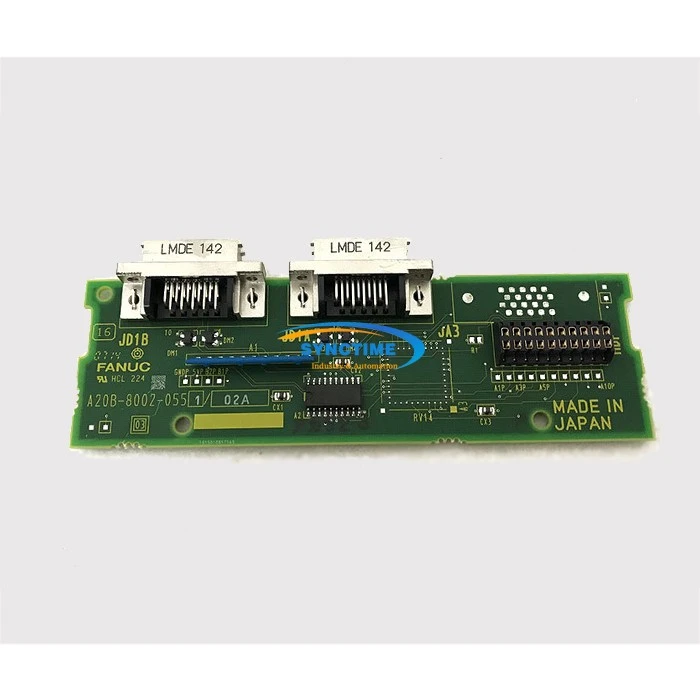

A20B-8002-0551 IO PCB Board
Model: A20B-8002-0551
Catalog: CNC Machine Parts - A20B-8002-0551 PCB Board
Overview:
A20B-8002-0551 is the operation panel/display interface control board (PCB) of FANUC Fanuc 0i-D/0i-MD/0i-TD series CNC system, belonging to the system I/O and display control module.
Details of A20B-8002-0551 IO PCB Board:
|
Part Name |
IO PCB Board |
|
Model |
A20B-8002-0551 |
|
Catalog |
CNC Machine Parts - A20B-8002-0551 IO PCB Board |
|
Application System |
FANUC 0i-D, 0i-MD (machining center/milling machine), 0i-TD (lathe) |
|
Function |
Drive 10.4-inch TFT LCD display (800 × 600) Manage MDI keyboard, function keys, and handwheel interfaces System display signal, button scanning, backlight control Partial versions integrate Ethernet/RS232 communication interfaces |
|
Interface |
LCD screen cable interface MDI keyboard interface Handwheel (MPG) interface System bus (communicating with motherboard) |
Hot Tags: A20B-8002-0551,A20B-8002-0551 IO Board,A20B-8002-0551 IO card,China A20B-8002-0551 IO PCB Board Supplier
