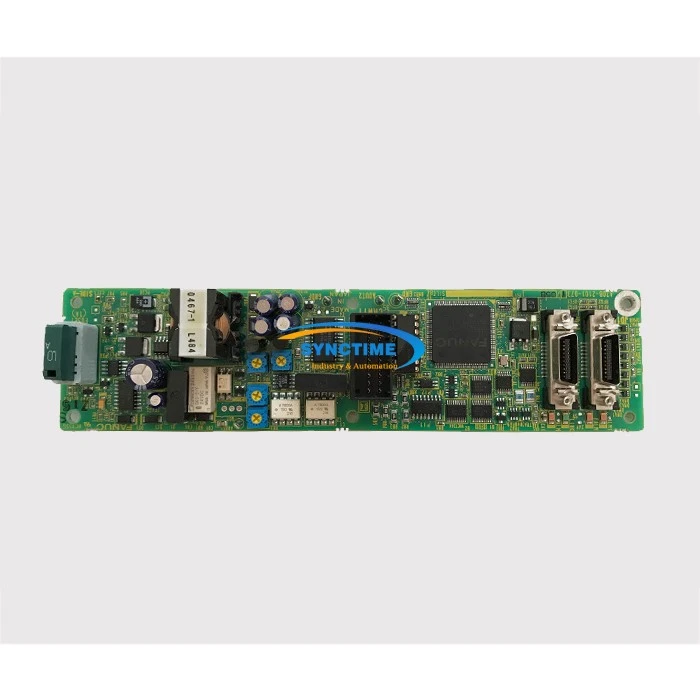

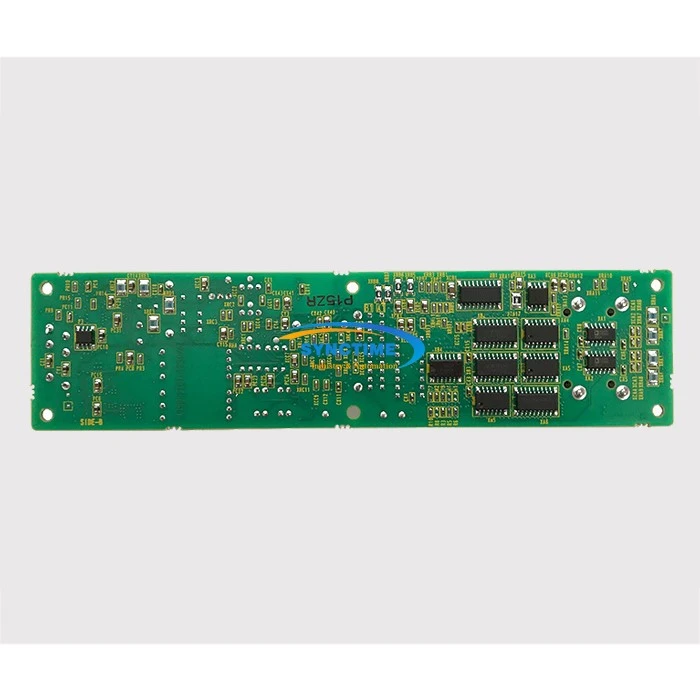

A20B-2101-0731 A20B-2101-0738 Process IO Board
Model: A20B-2101-0731 / A20B-2101-0738
Catalog: Fanuc CNC Parts - A20B-2101-0731 IO PCB A20B-2101-0738
Overview:
A20B-2101-0731 and A20B-2101-0738 are both FANUC Process I/O MB type I/O main control board used for R-30iA series robot controllers, providing large-scale digital and analog I/O expansion.
Details of A20B-2101-0731 A20B-2101-0738 Process IO Board:
|
Part Name |
Process IO Board |
|
|
Model |
A20B-2101-0731 |
A20B-2101-0738 |
|
I/O configuration |
WI: 5 / WO: 4 |
WI: 6 / WO: 5 |
|
Maximum I/O |
512 points DI/DO |
640 points DI/DO |
|
Relationship |
Can be replaced by A20B-2101-0738 |
Cannot be compatible with A20B-2101-0731 |
|
Alternative Model |
A20B-2101-0730 |
A20B-2101-0739 / A20B-2101-0740 |
|
Specification |
DC 24V, NPN(SINK) |
|
|
Catalog |
Fanuc CNC Parts - A20B-2101-0731 IO Board |
|
|
Application |
R-30iA/R-J3iC systems |
|
