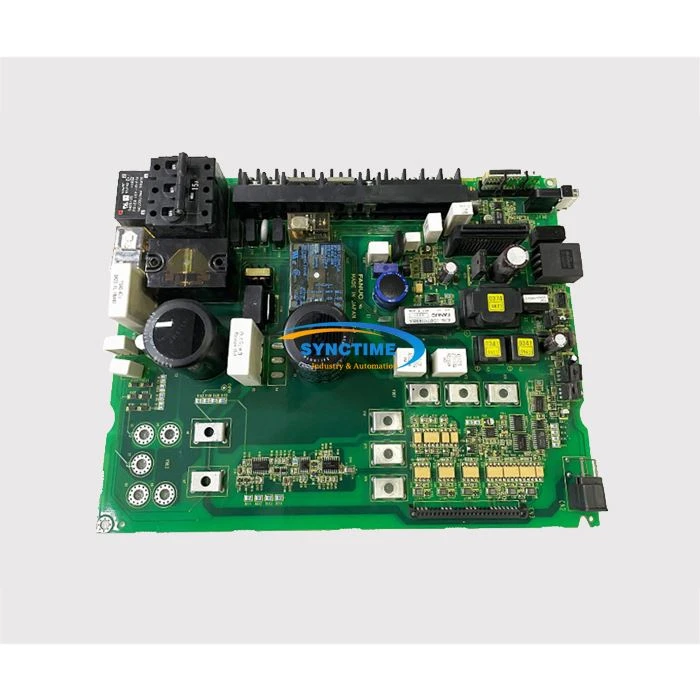

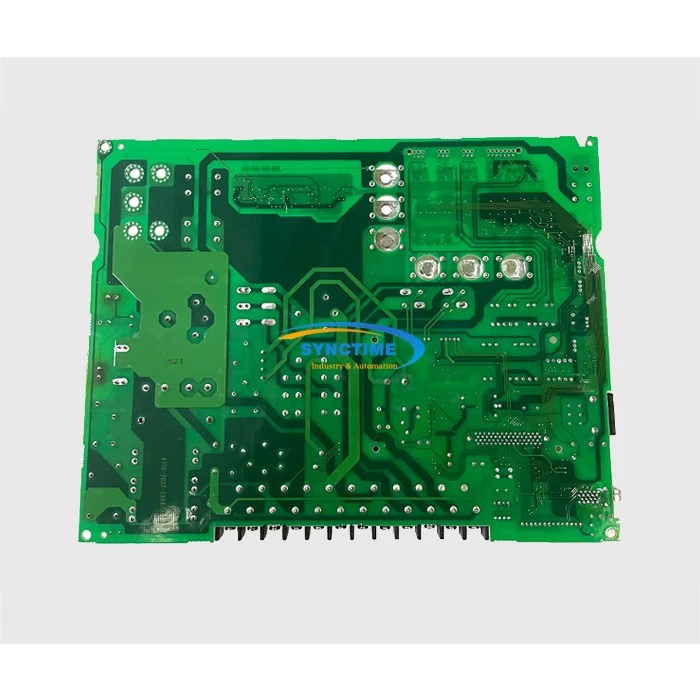

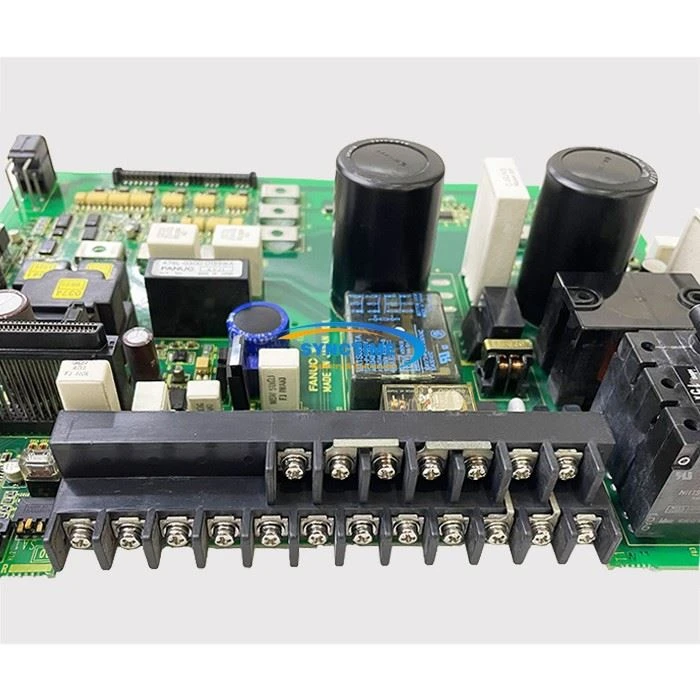

A20B-2002-0045 Servo Power Control PCB
Model: A20B-2002-0045
Catalog: Fanuc CNC Parts - A20B-2002-0045 Control Board
Overview:
A20B-2002-0045 is a FANUC servo power control board (SVUC servo power unit control board) used for power management and control of FANUC servo drive systems. It is commonly used in equipment supporting the αi/βi series servo amplifiers.
Details of A20B-2002-0045 Servo Power Control PCB Fanuc:
|
Part Name |
Servo Power Control PCB |
|
Model |
A20B-2002-0045 |
|
Catalog |
Fanuc CNC Parts - A20B-2002-0045 Control Board |
|
Application |
Systems: FANUC 0i MD/0i TD, 16i/18i/21i, 31i and other systems Servo: α i, β i series servo amplifiers (such as α iSV, β iSV, etc.) |
|
Interface Type |
Power interface: main power input, servo power output Control interface: CNC control signal, servo enable, emergency stop, alarm output Communication interface: FSSB fiber optic interface |
|
Supporting model |
Servo amplifier: A06B-6130/6140/6160 Power supply unit: A06B-6077/6079 System motherboard: A20B-8200/8100 |
Hot Tags: A20B-2002-0045,A20B-2002-0045 Control PCB,A20B-2002-0045 Control Board, China A20B-2002-0045 Servo Power Control PCB Supplier
