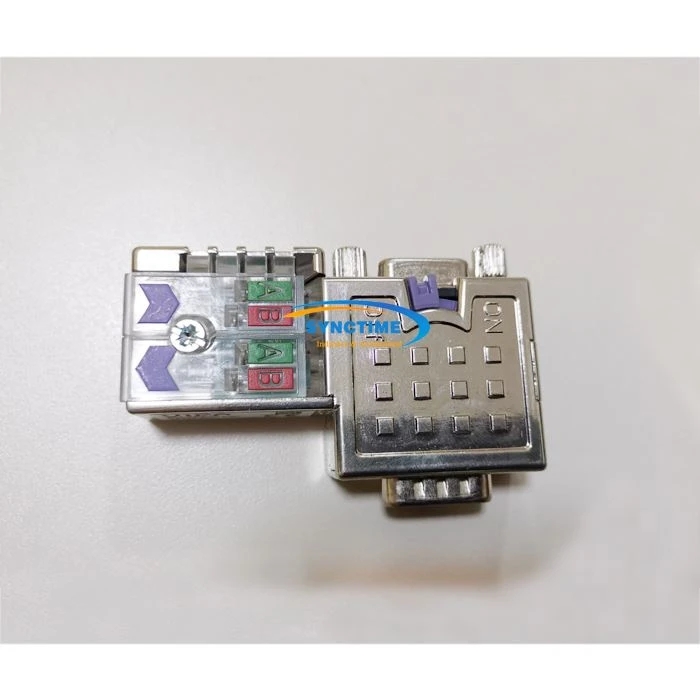

972-0DP10 972-0DP20 DP VIPA Connector Joint

Part Name

Connector Joint

Model

972-0DP10 / 972-0DP20

Interface

DB9 male head (PROFIBUS DP)

Specification

9.6 kbit/s ~ 12 Mbit/s,10 - 30 mA

Line

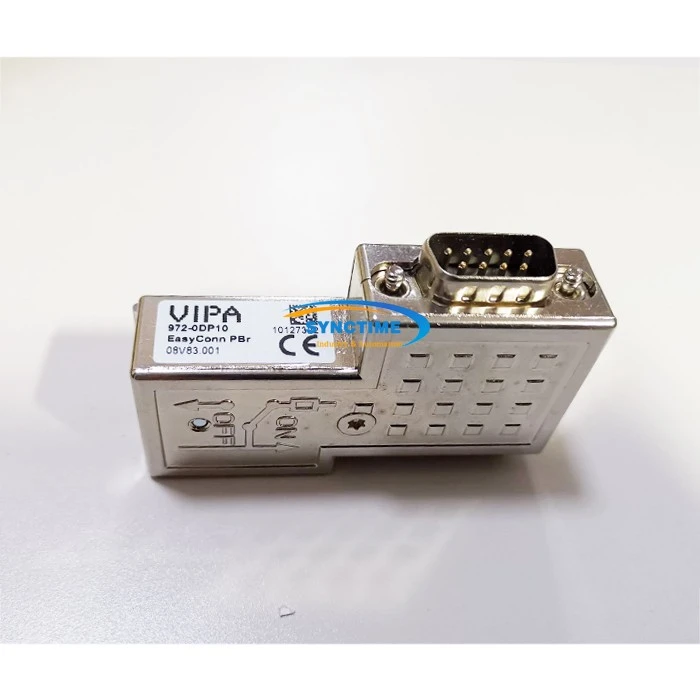

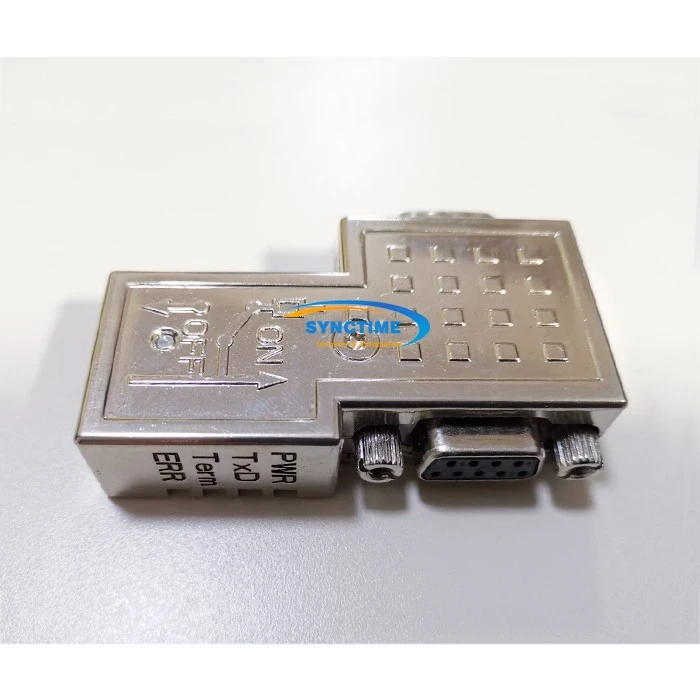

972-0DP10: 90°vertical outgoing line

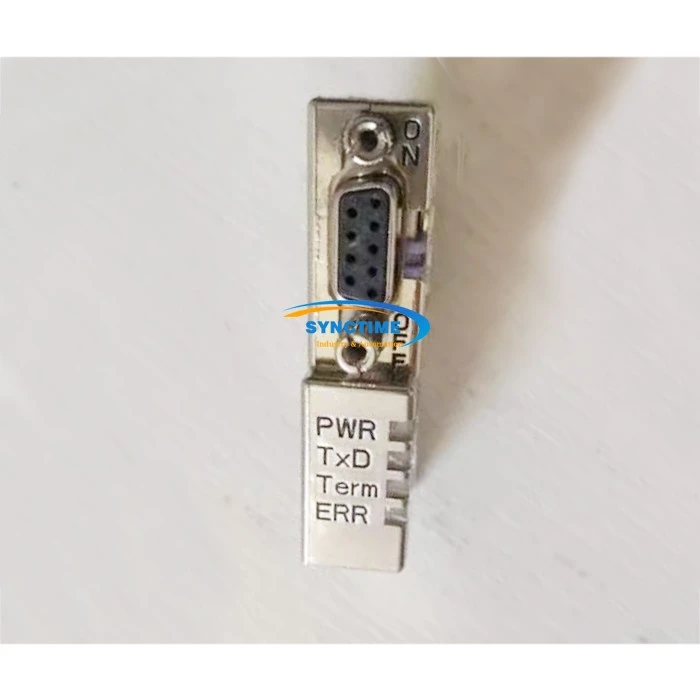

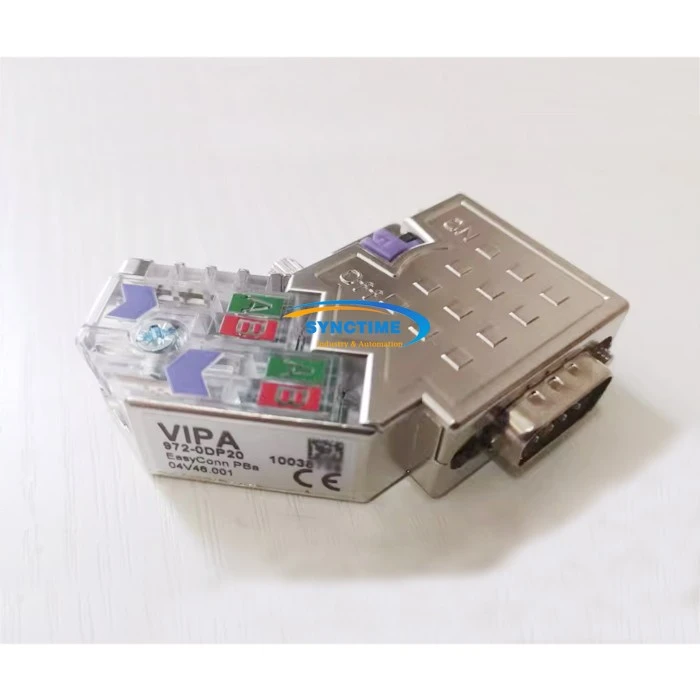

972-0DP20: 45°diagonal outgoing line

Adaptation

PLC and distributed I/O (ET200) connection

PROFIBUS communication for frequency converters, servos, and HMI

Industrial automation production line, robot, machine tool bus networking

On site debugging and diagnosis (PG port directly connected programmer)

Catalog

Industrial Consumables - Connector Joint 972-0DP10 / 972-0DP20
