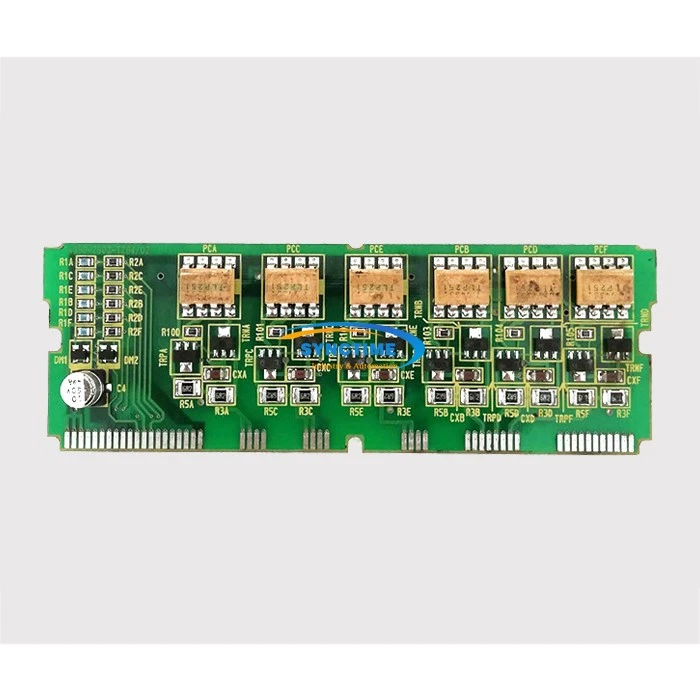

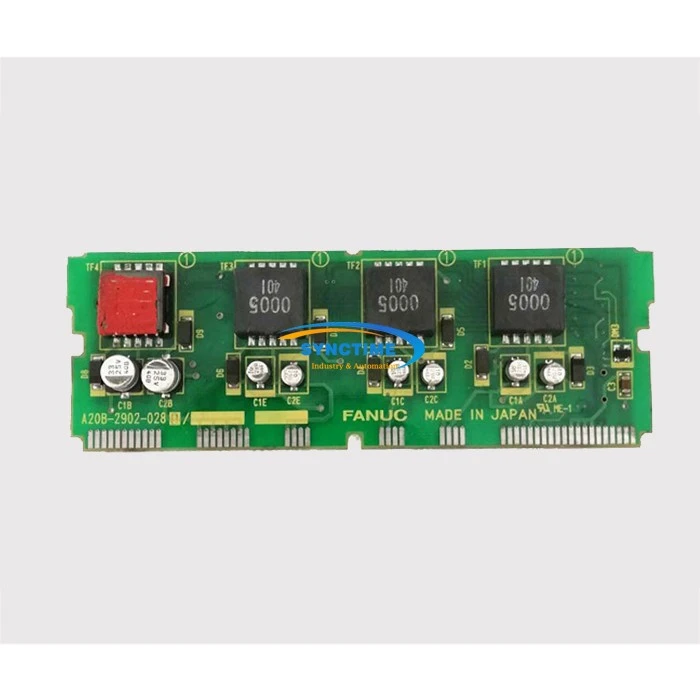

A20B-2902-0280 Servo Control Board

Part Name

Servo Control Board

Model

A20B-2902-0280

Specification

256KB, 72 pins

Interface

2 JF1/JF2 servo serial fiber ports (connected to amplifiers)

Catalog

CNC System Parts - A20B-2902-0280 Board

Application System

FANUC 16i-M / 16i-T, 18i-M / 18i-T, 21i-M / 21i-T

Function

Handle 2-axis servo closed-loop control (position/speed/current loop)

Connect FANUC α i/β i series serial servo amplifiers

Receive system instructions and output servo control signals

Feedback encoder position signal to system CPU
